Safety First: Understanding Fire Alarm Systems on Board Ship
Fire alarm systems on board ship stand as crucial safeguards, protecting against potential dangers that threaten both the crew and vessel within the ocean’s domain. Serving as discreet sentinels, these systems ensure safety in the aquatic environment. Beyond their mechanical components, they act as vigilant guardians, ready to respond swiftly by mobilizing individuals to counter the looming threat of fire.
The Need for Fire Alarm Systems
Fire threats can quickly escalate on ships because of the complex ecosystems they contain, which include machinery, fuel, and various materials in close quarters. A high-tech, quick-response fire alarm system is required to identify and warn in the event of a fire before it escalates into a disaster due to the elevated risk posed by electrical systems, flammable cargo, and confined spaces. As a crucial line of defense against the unpredictable nature of fire at sea, these systems silently monitor and analyze continuously, protecting everything from engine rooms to cargo holds.
Fire alarm systems are crucial, as real-life occurrences at sea have shown. Countless accounts exist of vessels that encountered unanticipated fires, with the crews’ reliance on the rapid response of cutting-edge fire alarm systems to spare the day. Small disasters have been prevented from becoming large calamities thanks to these technologies’ timeliness and accuracy. Time and again, fire alarm systems have been the unsung heroes that save lives on ships and in the unpredictable waters by detecting anomalies early and allowing prompt intervention.
Fire Alarm Sensor Systems
Fire sensors are innovative technological equipment that can detect smoke or fire on a ship and activate the fire suppression system immediately, making them an essential part of fire protection measures. In order to warn those on board of any fire dangers, these sensors are an essential part of the vessel’s fire detection and alarm system. With their own identifying numbers, the sensors can be quickly and accurately located in the case of a fire. The crew can more easily find and put out the fire thanks to this numbering system, which improves efficiency and protects everyone on board.
In order to provide ships with extensive fire detection capabilities, a variety of fire alarms are strategically placed:
1. Smoke Sensor
An essential part of fire safety, the smoke sensor (sometimes called a smoke detector) is positioned in key sections like the engine room, the accommodations, and the pump room. The sensor works by sensing airborne smoke particles and sounds an alarm in that case. The smoke detector quickly and accurately detects smoke and sounds an alarm in the event of a fire because of its smoke head.
2. Flame Sensor
Installed in vital locations such as the main engine room, generator, filters, and boilers, the flame sensor acts as a watchful firefighter. The sensor quickly triggers the fire alarm system by picking up infrared radiation given off by fires. The vessel’s critical machinery and compartments are protected by its strategic positioning, which allows for prompt detection and response to fires.

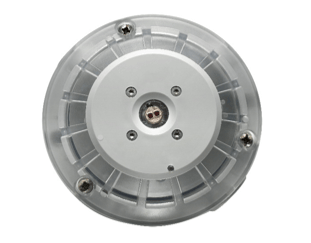

Flame sensor, source: Merchant Navy
3. Heat Sensor
Crucial instruments meant to identify temperature changes suggestive of a fire include heat sensors, often known as heat detectors. The first kind, known as a fixed-temperature detector, triggered when the temperature goes above a predetermined level, and the second, called a rate-of-rise detector, triggered when the temperature goes up at a predetermined pace. A strong fire detection system that can quickly adapt to changing fire conditions is made possible by these detectors, which are strategically located all over the ship. Heat sensors are an essential part of a ship’s fire safety system, whether they’re used to monitor the pace of temperature increase or in places with predetermined temperature limits.
Manual Alarm Systems
As a direct and immediate means for individuals to sound the alarm in the event of a fire emergency, manual alarm systems are an essential component of a vessel’s fire protection design. These systems enable occupants to respond quickly in the event that they detect a possible fire threat. These systems are often activated by manually controlled devices like break glass units or pull stations. The advantage of manual methods is that they allow for a more hands-on approach, which means that individuals near to the occurrence can verify the situation quickly. When people are involved on a personal level, they are better able to analyze the situation and respond efficiently by starting emergency procedures or evacuation processes.
A ship’s manual alarm systems are thoughtfully installed in different sections and compartments to make sure everyone can reach them. Engine rooms, control rooms, and high-risk zones are just a few examples of critical areas that must have their deployment prioritized. In order to provide a quick and accurate reaction in case of an emergency, it is critical that ship staff receive training on how to correctly use manual alarm equipment. By integrating with other components of the ship’s fire detection and alarm system, manual systems can be even more effective in enhancing overall marine safety. This is because manual systems provide a more hands-on approach to fire safety.
Safety of Life at Sea
The dedication of the maritime sector to improving safety standards is exemplified by “Safety of Life at Sea,” more commonly known as SOLAS. The first SOLAS contract was established in 1914 as a result of the terrible Titanic ship disaster that occurred in 1912. Reflecting the changing nature of maritime safety regulations over the years, subsequent revisions were made in 1929, 1948, 1960, and 1974.
In order to reflect developments in fire safety, the SOLAS 74 contract was extensively revised on July 1, 2002, marking a major milestone. Particularly, SOLAS 74 Part II-2 lays out the procedures that are necessary to protect ships from fire dangers. This part exemplifies SOLAS’s dedication to thorough safety frameworks; it contains articles on fire detection, extinguishing, evacuation procedures, and reactions to various fire situations.
Plus, the Fire Safety Systems (FSS) Code was included as a separate document in the 2002 edition of SOLAS 74, acknowledging the need for a more concentrated and simplified approach. Section 9 of the FSS Code now includes the requirements of fire detection system components, such as panels, detectors, manual call points, sounders, etc., in an effort to streamline the technical aspects of fire safety. These requirements under SOLAS highlight the maritime industry’s commitment to constantly improving safety measures on the open seas, with an emphasis on efficiency and technological precision.
Routine Maintenance and Evaluation
Regular maintenance and strict evaluation methods are crucial for ensuring the reliability of fire alarm systems on vessels. It is essential to do routine checks on the alarm system to detect any possible problems and keep it in top functioning order so that it can respond quickly to fire situations. Prioritizing routine maintenance, which includes visual inspections, functional testing, and system checks overall, is essential for ship operators and crew members. The fire alarm system will last longer and the vessel will be safer as a whole thanks to these preventative actions.
The crew and operators of the vessel can greatly benefit from using a thorough checklist when inspecting the fire alarm systems on a regular basis. Make sure all detecting devices are unobstructed and undamaged by visually inspecting them on this checklist. It is critical to assess the functionality of automatic detection systems and manual alarm stations to ensure they respond quickly. To further ensure effective dissemination of alarms, crew members should check that alerting appliances, including lights or bells, are working properly. Important parts of regular maintenance include checking the batteries of wireless systems and making sure the control panels are in good working order. Ship operators and crew members play a crucial role in ensuring the safety and security of maritime environments by following a standardized checklist, which allows fire alarm systems to operate smoothly.
Training and Awareness
Training for crew members is an essential part of marine safety protocols because of the crucial role they play in responding quickly and correctly to fire alarms. Shipboard emergency protocols, manual alarm device operation, and correct signal recognition should all be part of a comprehensive training program. By practicing for actual situations, the crew can become better prepared to handle fire emergencies in a timely manner during drills. Ship operators may enhance the safety of everyone on board by fostering a culture of preparedness through training and boosting the confidence and competence of the crew.
Eventually, fire alarm systems play a crucial part in maintaining a steadfast dedication to safety in the maritime domain. These systems are more than just components, they are guardians who are always on the lookout for danger and ready to act quickly and forcefully when fire breaks out. Fire alarm systems are like silent sentinels, keeping ships and their crews safe while they travel the unpredictable and enormous ocean. Their presence resonates over the vast underwater expanse, highlighting the importance of safety in a setting where the risks are significant.
References:
- Ahmed, S. P. (2023, November 25). Fire alarm in ship | What is Fire sensors, smoke sensors and flame sensors. Retrieved from Merchant Navy Decoded: https://www.merchantnavydecoded.com/fire-alarm-in-ship-what-is-fire-sensors-smoke-sensors-and-flame-sensors/
- Publishing, M. (2023, October 7). Usage of Fire Detection System on Ships. Retrieved from International Fire Protection: https://ifpmag.com/usage-of-fire-detection-system-on-ships/
- Team, T. E. (2022, October 26). Fire Detection on board ships: Key things to consider. Retrieved from Safety 4 Sea: https://safety4sea.com/cm-fire-detection-on-board-ships-key-things-to-consider/
